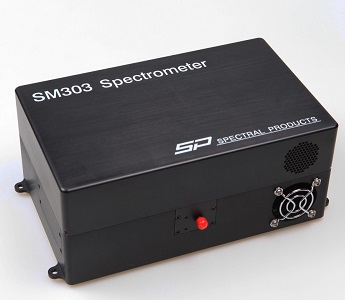

SM303 TE制冷式光譜儀
SM303制冷式光譜儀是一款科研級，高性價比，高信噪比，高量子效率，低雜散光的光譜儀。是測量弱光源的*。SM303制冷式光譜儀采用濱松 S10420-1106 背照式CCD，1024像素，具有較高的分辨率和靈敏度。SM303在紫外波段表現尤為出色，而且動態范圍高。它可以提供850nm的測量范圍。有效光譜測量范圍：200-1050nm。制冷型探測器通過降低噪聲水平可以探測到極低的信號光。
光譜儀軟件包括基于Windows的SM32光譜采集和分析軟件，以及SDK和DLLs供客戶自行開發。
應用領域：
產品特點：
產品參數：
| Feature | Value |
| Detectors | Hamamatsu S7031-1006 back-thinned CCD
|
| Spectrograph f# | 3.3 |
| Dark Noise RMS | <2 RMS counts in 16bit @35msec integration time |
| Signal to Noise Ratio | >1000: 1 |
| Fiber Coupler | SMA905 or FC standard |
| Effective Spectral Range | 200 to 1050nm |
| Order Sorting Filter | Longpass filter or linear variable filter installed per wavelength coverage |
| Spectral Resolution | 0.15 to 10nm depending on the slit and grating choices |
| Stray Light | <0.01% at 632nm (<0.05% Ave) |
| Computer interface | USB 1.1/2.0 16 bit (0-65535), support up to 8 multi-channel configuration |
| Minimum integration time | 7msec |
| Trigger Mode | Free Run Mode Software Trigger Mode External trigger mode (9-pin connector) : TTL Edge trigger input/digital output for monitoring |
| Dimensions (inches) | 9.13 H X 5.12 W X 3.56 D |
| Weight | 7 lbs. |
| Software | SM32Pro (free with spectrometer) Includes DLL libraries and SDKs for easy custom application development |
